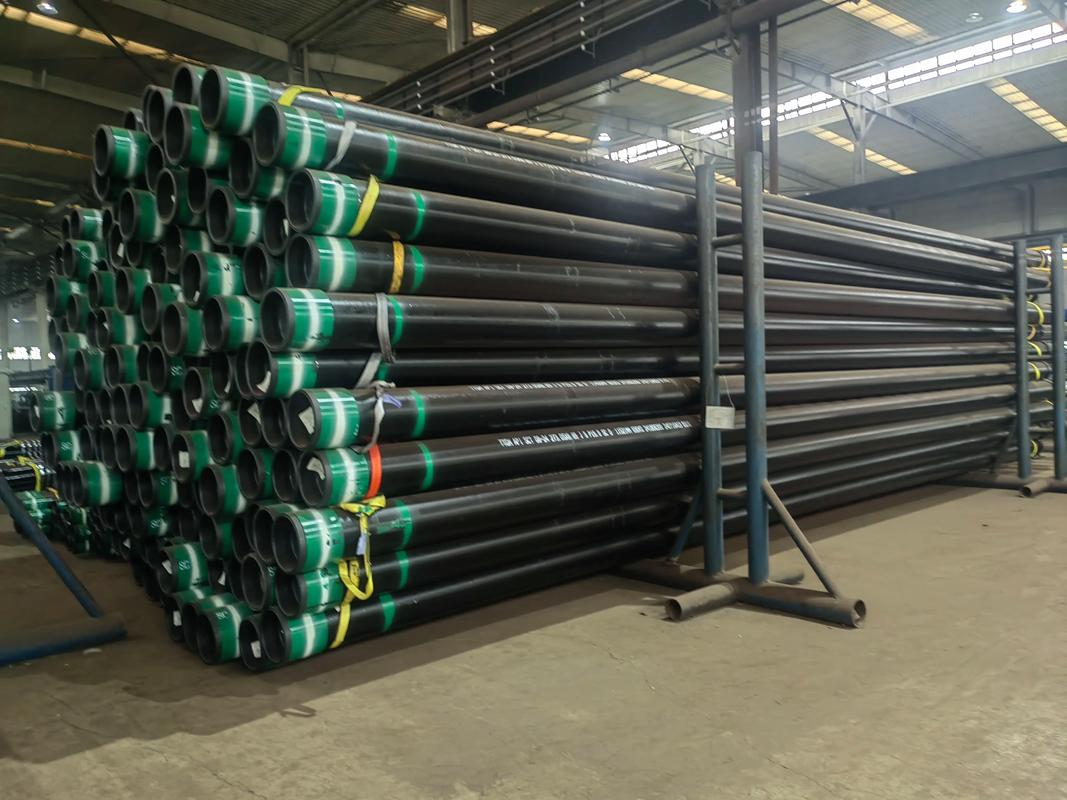

API 5CT K55

Product introduction

Comprehensive Analysis of API 5CT Grade K55

Grade K55 is a specialized grade within the API 5CT standard. While it shares the same minimum yield strength as the common J55 grade, it is distinguished by stricter controls on its chemical composition and mechanical properties, making it suitable for more demanding environments, particularly where hydrogen sulfide (H₂S) may be present.

1. Mechanical Properties Analysis

The key value of K55 lies in the control of the upper limits of its mechanical properties, not just meeting minimum requirements.

Yield Strength: Minimum 55,000 psi (379 MPa). Identical to J55.
Tensile Strength: Minimum 75,000 psi (517 MPa), Maximum 95,000 psi (655 MPa). This is the most critical distinction from standard J55, which has no specified maximum tensile strength. This upper limit directly controls the final hardness.
Hardness: Strictly limited to ≤ 241 Brinell Hardness (HBW) or ≤ 22 HRC (Rockwell C). This controlled hardness is a mandatory requirement for K55, whereas for J55 it is only a feature of specific "Type-1" versions.
Elongation: Maintains good ductility (e.g., minimum ~22% in 2 inches), similar to J55.
Key Mechanical Takeaway: K55 is engineered for predictable and controlled strength. The maximum tensile/hardness limits are specifically designed to provide inherent resistance to Sulfide Stress Cracking (SSC) in mild sour service conditions, which is a primary risk for standard carbon steels in H₂S environments.

2. Material and Chemical Composition Analysis

The chemical composition of K55 is refined to enhance its performance integrity, particularly regarding toughness and resistance to hydrogen-related failure modes.

Element	Typical / Maximum Content (%)	Purpose and Implication
Carbon (C)	0.30 - 0.45	Provides base strength. Balanced to maintain weldability.
Manganese (Mn)	1.20 - 1.60	Enhances strength and hardenability through solid solution strengthening.
Phosphorus (P)	≤ 0.030	Harmful impurity, kept low to preserve toughness and prevent embrittlement.
Sulfur (S)	≤ 0.015	The key differentiator. This maximum level is half that of standard J55 (0.030%). Ultra-low sulfur minimizes manganese sulfide (MnS) inclusions, which are initiation sites for cracks, dramatically improving through-thickness ductility and resistance to Hydrogen-Induced Cracking (HIC).
Silicon (Si)	0.20 - 0.35	Standard deoxidizer during steelmaking.
Key Material Characteristics:
1. "Cleaner" Steel: The low sulfur specification (<0.015%) classifies K55 as a cleaner steel with superior internal soundness compared to standard J55.
2. Microstructure: Typically supplied in a normalized or quenched & tempered condition to achieve a fine, uniform ferrite-pearlite or tempered martensite structure, optimizing the strength-toughness balance.
3. Sour Service Design: Due to its mandatory hardness control (≤ 22 HRC) and low sulfur content, K55 is formally recognized as acceptable for mild sour service under NACE MR0175/ISO 15156 guidelines. This is its primary design purpose.
4. Corrosion Note: It remains a carbon steel with no alloying for corrosion resistance (e.g., no added Chromium). Its improvement is specific to resisting SSC/HIC in sour environments, not general or CO₂ corrosion.

Summary & Critical Comparison with J55

API 5CT Grade K55 is a medium-strength, quality-assured steel grade designed for reliability where environmental conditions are uncertain or mildly aggressive.

The Core Distinction: Think of J55 as the "standard" grade for benign, H₂S-free conditions. K55 is the "sour-service-ready" version of the same strength level, with built-in controls for hardness and steel cleanliness.
Mechanical: Identical 55 ksi minimum yield to J55, but adds a maximum tensile strength (95 ksi) and mandatory hardness control.
Material: Defined by its very low sulfur content (≤0.015%), ensuring better toughness and resistance to hydrogen-related cracking mechanisms (SSC/HIC).
Primary Application: The preferred economic choice for surface casing, intermediate casing, and conductor pipe in regions with potential or known mild H₂S contamination. It provides a crucial safety and performance margin over standard J55 in such applications without the cost of full alloy grades like L80 or C90.
