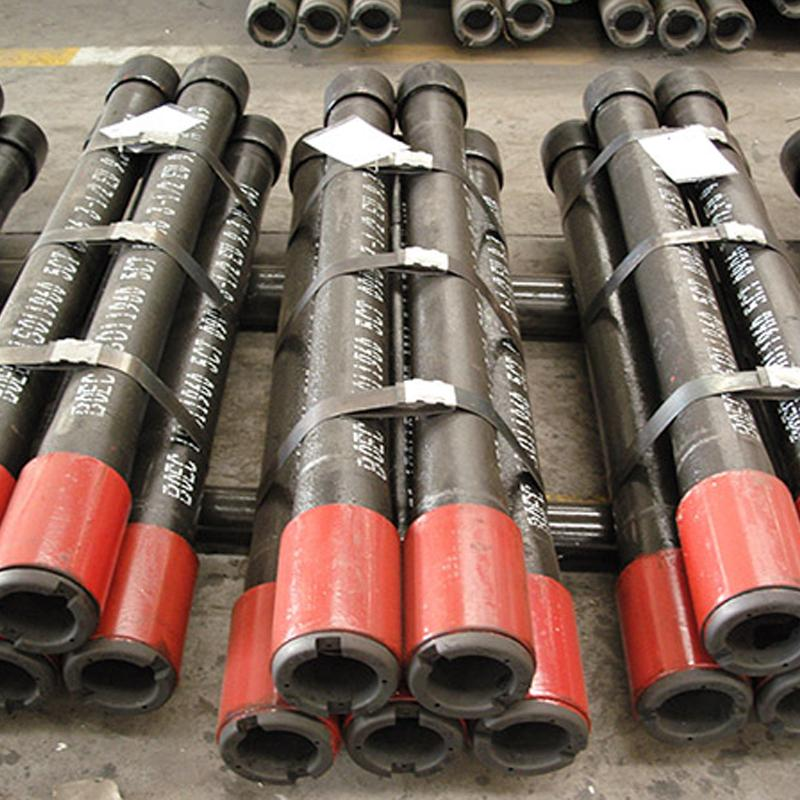

API 5CT P110

Product introduction

Comprehensive Analysis of API 5CT Grade P110

Grade P110 is the highest-strength, commonly used grade in the API 5CT standard for casing and tubing. It belongs to the Group 3 (high-strength, non-sour) category and is engineered exclusively for deep, ultra-deep, and high-pressure wells where mechanical loads are the primary design challenge, and corrosive environments (H₂S) are confirmed to be absent.

1. Material (Chemical Composition) Analysis

P110's chemistry is a carbon-manganese steel, often microalloyed, optimized for maximum hardenability to achieve its high strength through quenching and tempering. It contains no deliberate additions of chromium or molybdenum for sour service resistance.

Element	Typical Range (%)	Maximum / Key Limit (%)	Purpose and Metallurgical Role
Carbon (C)	0.28 – 0.38	0.40	The primary strengthening element. Higher than lower grades to ensure sufficient carbon for martensite formation to reach 110 ksi yield strength after Q&T.
Manganese (Mn)	1.40 – 1.80	1.90	Critical for hardenability. High Mn ensures the steel transforms fully to martensite even in thick-walled sections during quenching.
Phosphorus (P)	-	0.025	Impurity, strictly limited.
Sulfur (S)	-	0.015 – 0.030	Controlled but not at ultra-low sour-service levels.
Microalloying (V, Nb, Ti)	Common	-	Vanadium, Niobium, or Titanium are frequently added for grain refinement and precipitation strengthening, enhancing both strength and toughness.

Key Material Characteristics:

Non-Alloy, High-Hardenability Steel: P110 is fundamentally designed for strength, not corrosion resistance. Its lack of Cr/Mo and higher carbon content make it fundamentally unsuitable for H₂S service.
Mandatory Heat Treatment: Always supplied in the Quenched & Tempered (Q&T) condition. The microstructure is a tempered martensite, which is the only structure capable of delivering this combination of strength and ductility.
Sour Service Incompatibility: Due to its high carbon and manganese content, the resulting as-tempered hardness ranges from 28 to 38 HRC, far exceeding the NACE MR0175 limit of 22 HRC for sour service. P110 is strictly prohibited in environments containing hydrogen sulfide.

2. Mechanical Properties Analysis

P110's mechanical profile is defined by its exceptionally high strength, with a focus on achieving the minimum requirement without strict upper limits.

Property	Specification / Typical Value	Comments & Engineering Significance
Yield Strength	Min: 110,000 psi (758 MPa) No specified maximum (critical)	The defining 110 ksi minimum yield enables well designs exceeding 6,000m depth and very high pressure containment. The lack of an upper yield limit is a major engineering consideration.
Tensile Strength	Min: 125,000 psi (862 MPa)
Yield-to-Tensile Ratio (Y/T)	0.90 – 0.95+ (Very High)	P110 naturally has a high Y/T ratio due to its strength. Ratios approaching or exceeding 0.95 indicate limited plastic deformation capacity before failure, which affects collapse resistance and ductile fracture behavior.
Hardness	Typically 28 – 38 HRC (269 – 352 HBW)	This high, uncontrolled hardness is the direct result of its chemistry and strength level. It is the primary reason P110 is forbidden in sour service, as it is highly susceptible to Sulfide Stress Cracking (SSC).
Elongation	Minimum specified but lower (e.g., ~12% in 2 inches)	Ductility is adequate for handling but is lower than in lower-strength grades.
Collapse & Burst Resistance	Excellent (Highest among common grades)	Provides the highest pressure ratings of the commonly stocked API grades, making it ideal for the deepest casing strings.

Critical Engineering Challenges with P110:

Over-Strength and Property Scatter: The absence of a maximum yield strength means pipes can be delivered with yield strengths as high as 140-150 ksi. This "over-strength" leads to:

Excessive hardness.
Reduced toughness and ductility.
Increased risk of thread galling during make-up.
Unpredictable collapse performance (collapse strength can decrease if Y/T ratio gets too high).

Limited Toughness: Its high strength and tempered martensite structure can result in lower Charpy impact toughness compared to specially designed sour service grades, posing a risk in low-temperature or dynamic loading situations.

Synthesis and Application Summary

Grade P110 is the benchmark for high mechanical performance in benign (sweet) environments.

Primary Application: The go-to grade for:

Production casing and intermediate casing in deep and ultra-deep, H₂S-free oil and gas wells.
Casing in high-pressure/high-temperature (HPHT) sweet reservoirs.
Heavy-wall liner applications where collapse resistance is paramount.

When NOT to Use P110: Absolutely never in the presence of H₂S, even in trace amounts. It is also less suitable where high impact toughness is a critical requirement.
Material Selection Context:

P110: Higher min. yield (110 vs. 95 ksi), NO H₂S resistance, higher hardness, no max. yield limit.
T95: Slightly lower min. yield (95 ksi), FULL H₂S resistance, strictly controlled hardness (≤25 HRC), strict max. yield limit (110 ksi).
Choosing P110 over T95 in a sour well is a catastrophic design error.
vs. N80/L80: P110 provides ~38% higher minimum yield strength than N80/L80.
vs. T95/C110: This is the most critical comparison. P110 and T95 are not interchangeable.

Final Analogy: If N80 is a heavy-duty truck and L80/T95 are armored chemical tankers, then P110 is a Formula 1 race car—built for one purpose: extreme mechanical performance under controlled, ideal (sweet) conditions. Putting it on a corrosive, rocky path (sour environment) guarantees a rapid and violent failure.
