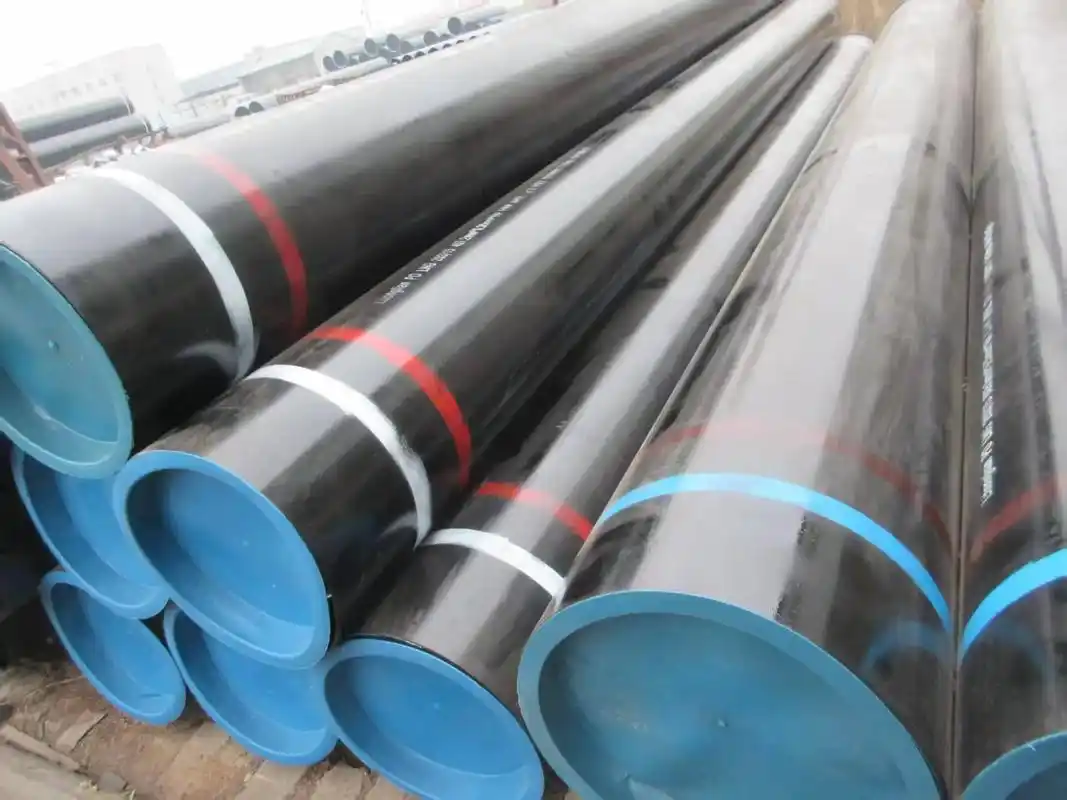

API 5L X60

Product introduction

API 5L X60 Pipeline Steel: Key Properties & Material Analysis

1. Mechanical Properties (API 5L PSL2)

Key Specifications:

• Yield Strength (YS): ≥ 414 MPa (60,000 psi), typical 427-496 MPa

• Tensile Strength (TS): ≥ 517 MPa (75,000 psi), typical 538-621 MPa

• Yield-to-Tensile Ratio: ≤ 0.93, typical 0.80-0.90

• Elongation: ≥ 20%, typical 22-32%

• Charpy Impact: ≥ 40J @ 0°C, typical 100-250J @ -10°C

• Hardness: ≤ 248 HV10, typical 190-235 HV10

Advancement over X52:

• ~15% higher yield strength (from 358 to 414 MPa)

• Allows 10-15% wall thickness reduction at same design pressure

2. Material & Chemical Composition

Key Chemistry (wt%):

Metallurgical Highlights:

1. Alloy Design: "Low-C + High-Mn + Nb-V-Ti Microalloying"

2. Key Advancement: Achieves higher strength while maintaining weldability through reduced carbon and optimized microalloys.

3. Microstructure: Predominantly acicular ferrite (70-85%) with finer grains (3-8 μm) and fine Nb(C,N) precipitates (5-15 nm).

3. Summary

X60 provides a balanced strength-toughness upgrade from X52:

• Strength: Significant increase suitable for higher-pressure lines.

• Consideration: Higher carbon equivalent requires more controlled welding procedures than X52.

• Position: Mainstream entry-grade for high-performance pipelines, widely used in high-pressure oil & gas transmission projects.
