ASTM 106

Product introduction

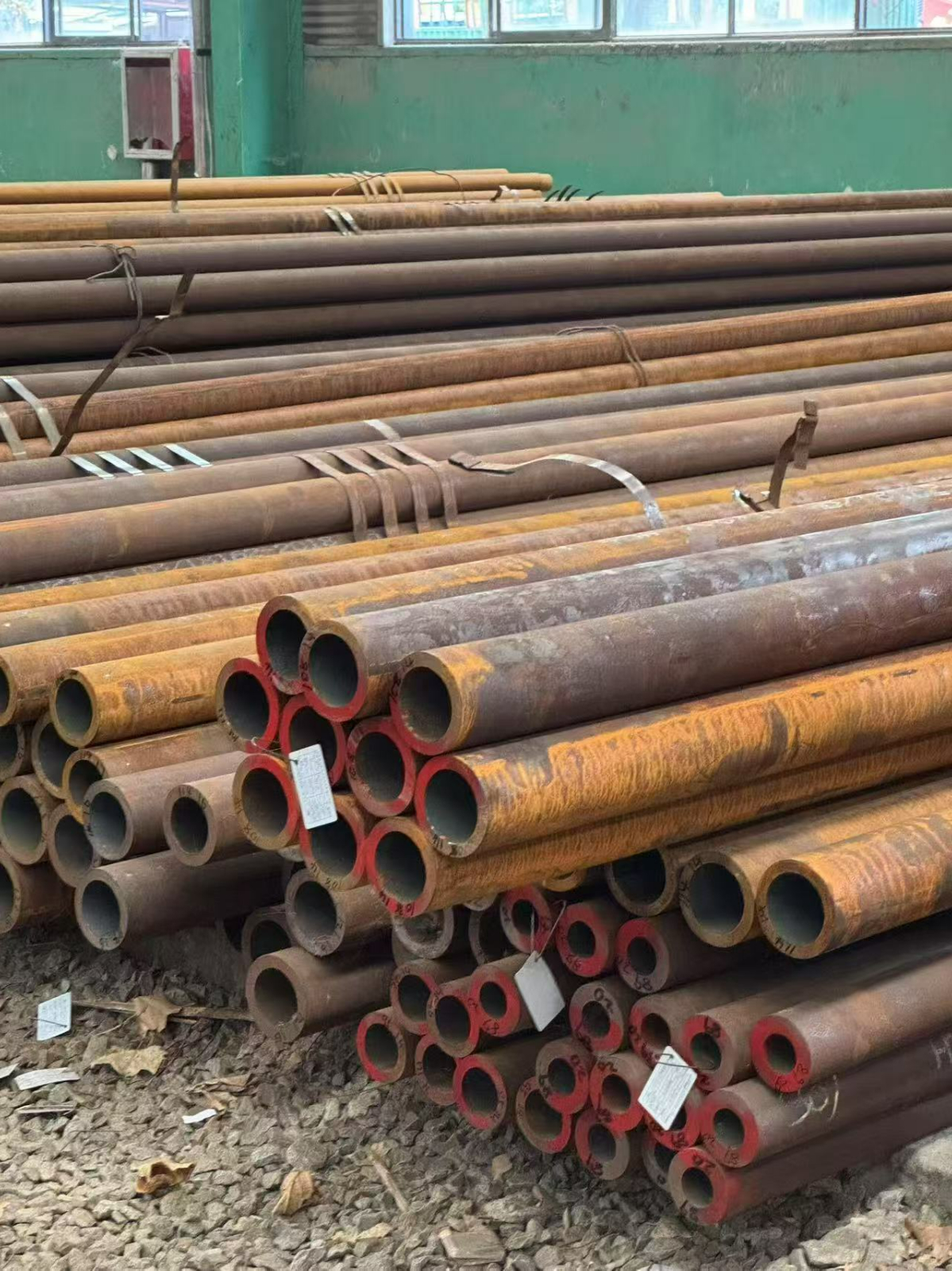

ASTM A106 Seamless Carbon Steel pipe

ASTM A106 pipe is the standard specification for seamless carbon steel pipe for high-temperature service. Applications are transport gasses or fluids in refineries and boiler plant bearing high temperatures and pressures. Pipe produced according to ASTM A106 shall be suitable for bending, flanging, welding and other forming operations.AGICO ANSON supplies astm a106 grade b seamless pipe and erw pipe, if you are interested in buying ASTM A106 pipe, don't hesitate to contact us now!

For ASTM A106 seamless steel pipe could transport fluids or gasses at high temperature and pressure levels, with 3 grades A, B, C, most common used ASTM A106 Grade B is widely used in the projects of oil and gas refineries, power plants, petrochemical plants, boilers.

ASTM A106 Chemical composition:

Steel Grade	C, max.%	Mn %	P, max	S, max	Si, min	Cr, max	Cu, max	Mo, max	Ni, max	V, max
Grade A	0.25	0.27 - 0.93	0.035	0.035	0.10	0.40	0.40	0.15	0.40	0.08
Grade B	0.30	0.29 - 1.06	0.035	0.035	0.10	0.40	0.40	0.15	0.40	0.08
Grade C	0.35	0.29 - 1.06	0.035	0.035	0.10	0.40	0.40	0.15	0.40	0.08

ASTM A106 Seamless Steel Pipe Production

ASTM A106 Mechanical Property:

Grade	Tenssile Test MPa or N/mm2		Remarks (Similar to JIS)
Grade	MIn. Yield Point	Tensile Strength	Remarks (Similar to JIS)
Gr A	205	330Min	(STPG370)
Gr B	240	415Min	(STPG410)
Gr C	275	485Min	(STPG480)

ASTM A106 Dimension Tolerances:

Pipe Type	Pipe Sizes		Tolerances
Cold Drawn	OD	≤48.3mm	±0.40mm
	OD	≥60.3mm	±1%mm
	WT		±12.5%

Number of Tests Required

	NPS	On One Length from Each Lot of
Tensile	5 and smaller	400 or less
6 and larger	200 or less
Bending	2 and smaller	400 or less
Flattening	2 through 5	400 or less
6 and over	200 or less

(Note: This information is collected from ASTM Specification A106. Please contact us for more details of product standard specification )
