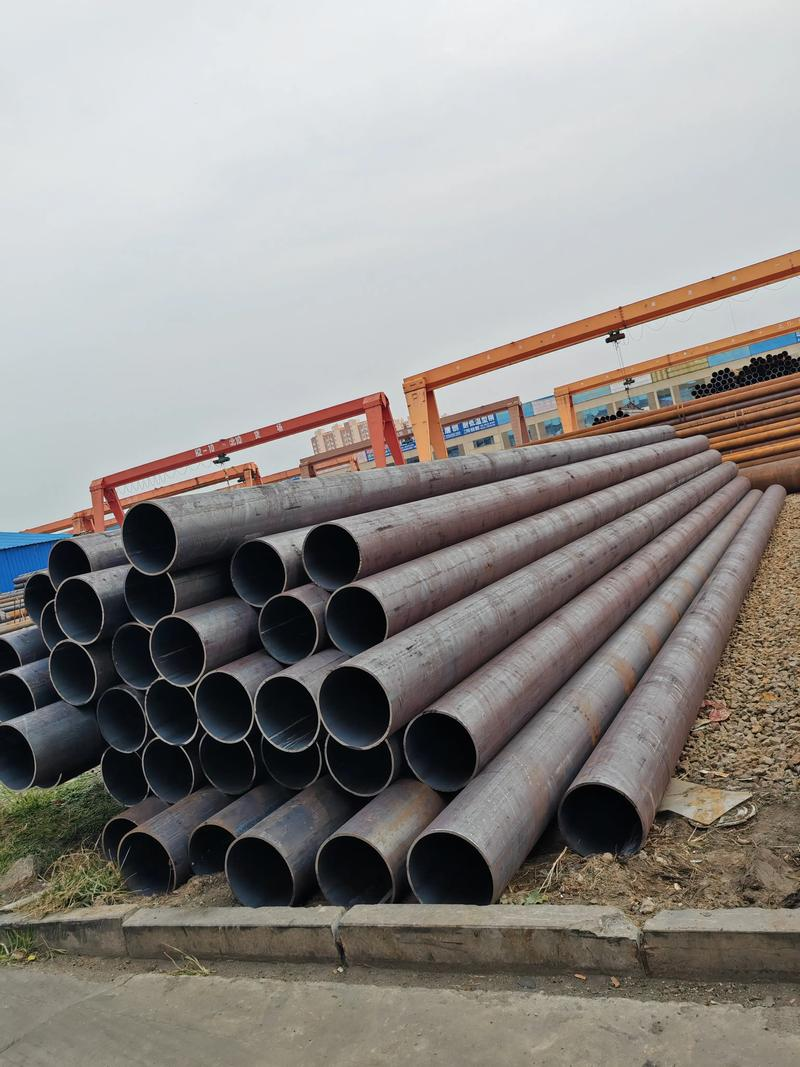

ASTM A53

Product introduction

ASTM A53 Steel: Material Analysis and Mechanical Properties

1. Material Overview

ASTM A53 is a standard specification for pipe, steel, black and hot-dipped, zinc-coated, welded and seamless. This widely used material covers seamless and welded steel pipe with nominal wall thickness, commonly employed for mechanical and pressure applications as well as ordinary uses in steam, water, gas, and air lines.

2. Chemical Composition (Type F, Type E, Type S)

Element	Type F (Furnace Butt-Weld) %	Type E (Electric-Resistance Weld) %	Type S (Seamless) %	Role in Steel Properties
Carbon (C)	≤ 0.30	≤ 0.30	A: ≤ 0.25, B: ≤ 0.30	Strength, weldability
Manganese (Mn)	≤ 1.20	≤ 1.20	≤ 1.20	Strength, hardenability
Phosphorus (P)	≤ 0.05	≤ 0.05	≤ 0.05	Impurity (reduces toughness)
Sulfur (S)	≤ 0.045	≤ 0.045	≤ 0.045	Impurity (affects weldability)
Copper (Cu)	≥ 0.40*	≥ 0.40*	≥ 0.40*	Corrosion resistance
Silicon (Si)	-	-	≤ 0.40	Deoxidizer
Iron (Fe)	Balance	Balance	Balance	Base metal

Note: Copper requirement applies only when specified for enhanced corrosion resistance.

3. Mechanical Properties by Grade

Property	Grade A	Grade B	Testing Standard
Tensile Strength, min	48,000 psi (330 MPa)	60,000 psi (415 MPa)	ASTM A370
Yield Strength, min	30,000 psi (205 MPa)	35,000 psi (240 MPa)	ASTM A370
Elongation, min	35% (longitudinal), 25% (transverse)	30% (longitudinal), 20% (transverse)	ASTM A370
Hardness (max)	179 HBW / 92 HRB	179 HBW / 92 HRB	ASTM E18/E10

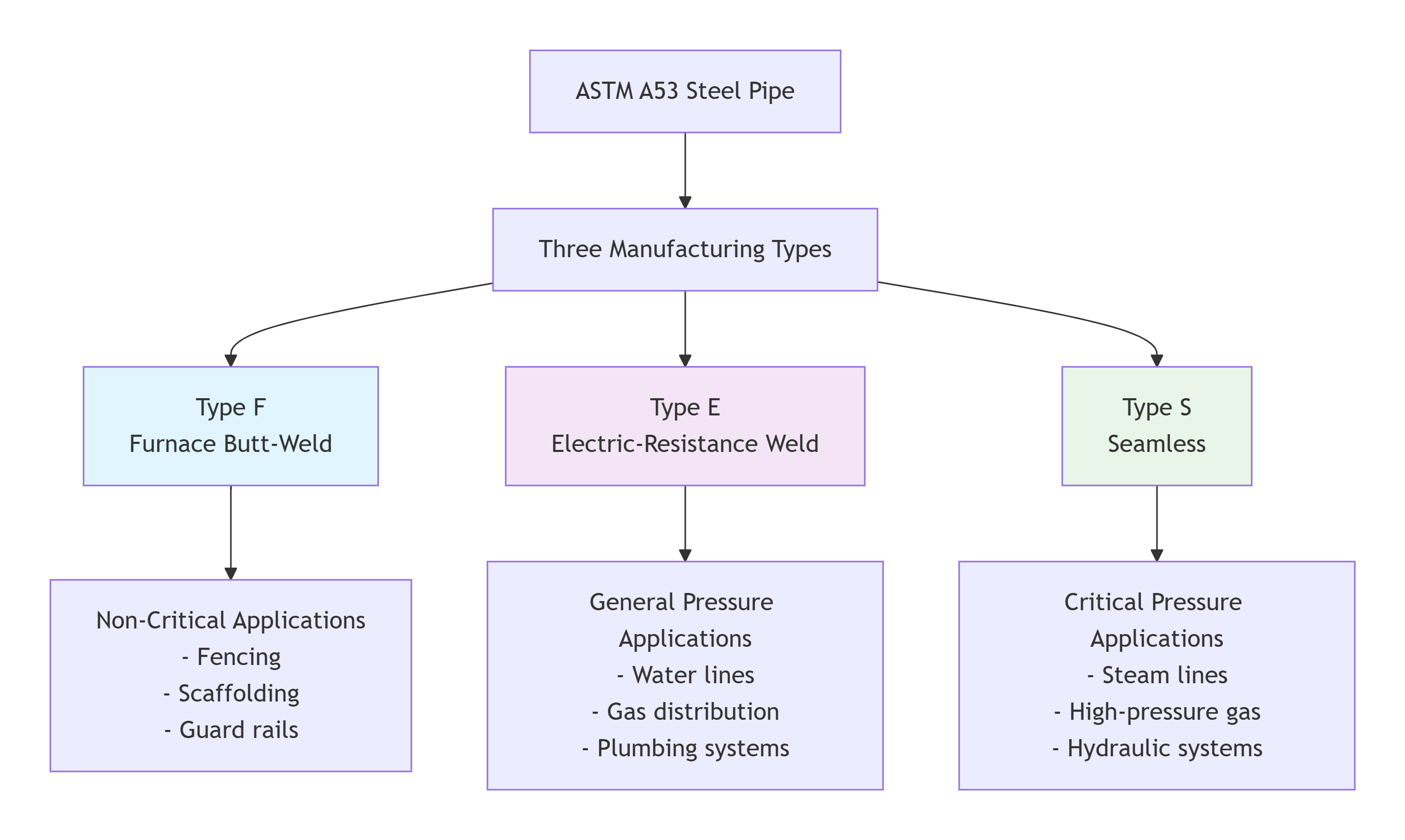

4. A53 Product Types and Application

5. Key Characteristics

Versatility: Available in seamless (Type S) and welded (Types E & F) forms
Corrosion Protection: Available with hot-dipped galvanized coating
Grade Options: Grade A (lower strength) and Grade B (higher strength)
Size Range: 1/8" to 26" nominal pipe sizes
End Finishes: Plain end, threaded, or grooved

6. Common Applications

Plumbing systems for water supply and drainage
Fire protection sprinkler systems
Structural applications (fencing, handrails, scaffolding)
Low-pressure steam and condensate lines
Compressed air systems
Oil and gas gathering lines
HVAC systems

7. Comparison with Similar Pipe Materials

Property	ASTM A53	ASTM A106	ASTM A500
Primary Use	General purpose pipe	High-temperature service	Structural tubing
Temperature Limit	Moderate temperatures	Up to 750°F (399°C)	Ambient temperature
Manufacturing	Seamless & welded	Seamless only	Welded & seamless
Grades	A & B	A, B, C	A, B, C, D
Typical Coating	Black or galvanized	Black	Black or painted

8. Fabrication Considerations

Welding: Grade B has better weldability than Grade A due to controlled carbon content
Threading: Excellent threadability, especially in Grade B
Bending: Good cold bending properties within recommended radii
Galvanizing: Hot-dip galvanized version provides corrosion resistance
Joining Methods: Can be threaded, welded, or coupled with mechanical connections

9. Pressure Ratings (Example for Schedule 40)

Nominal Pipe Size	Wall Thickness	Grade B Pressure Rating (psi)
1/2"	0.109"	1,670 psi
1"	0.133"	1,330 psi
2"	0.154"	1,080 psi
4"	0.237"	790 psi
6"	0.280"	670 psi

Note: Pressure ratings based on Barlow's formula with design factor. Actual ratings depend on temperature and service conditions.

10. Limitations and Special Notes

Not for high-temperature service above 400°F (204°C)
Type F pipe should not be used for bending, flanging, or similar forming operations
Galvanized pipe may develop white rust if stored improperly
Threaded connections may reduce pressure rating due to wall thickness reduction
Not recommended for cryogenic or severely corrosive environments without additional protection
