Product introduction

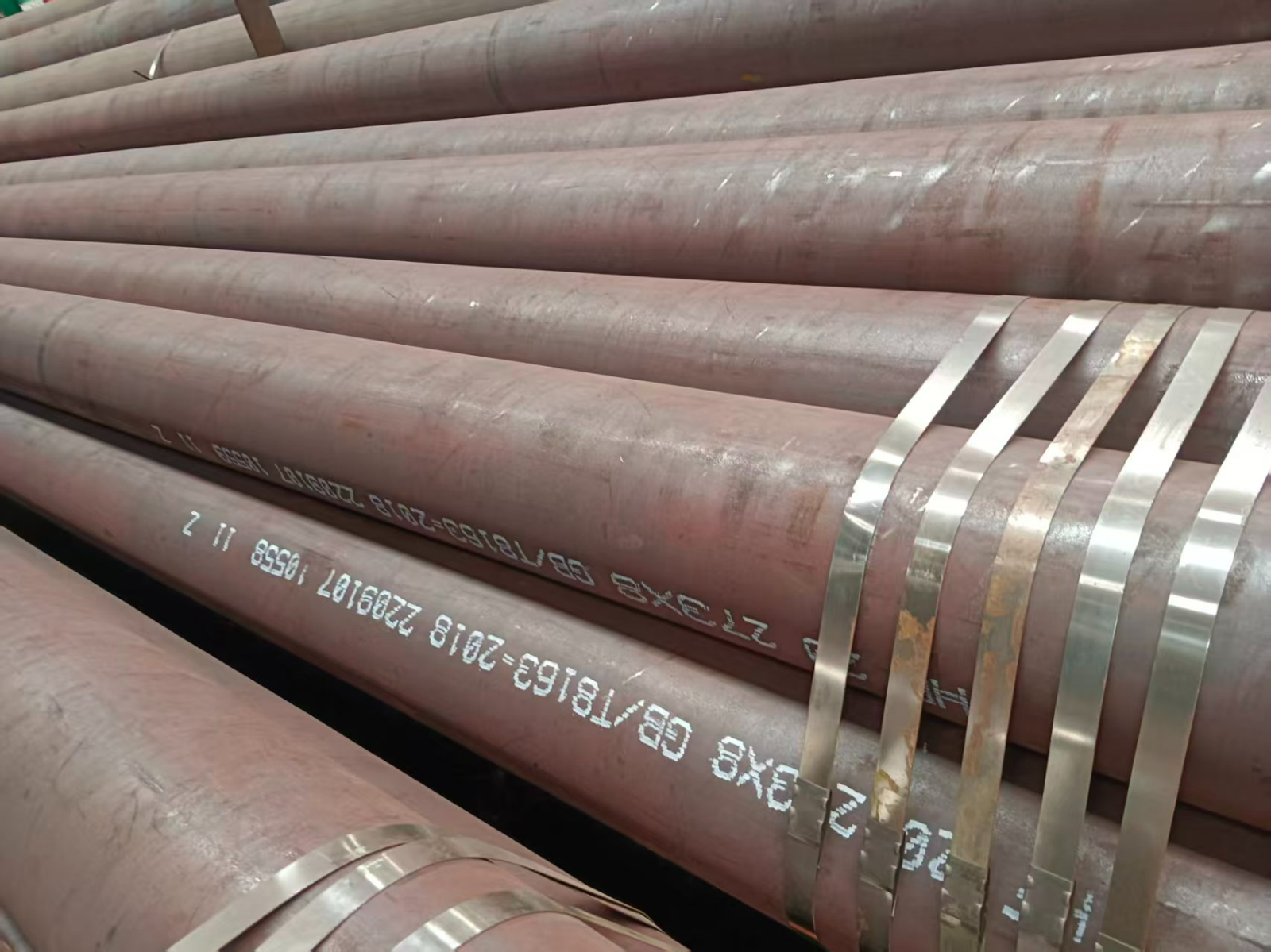

Grade 20# Steel is a high-quality carbon structural steel, where the "20" indicates an average carbon content of about 0.20%. It is one of the most widely used steels in machinery manufacturing and fluid transport due to its excellent overall performance—good strength, plasticity, toughness, and weldability—coupled with low cost.
The chemical composition of 20# steel is the foundation of its properties, governed by the Chinese standard GB/T 699-2015 "High-Quality Carbon Structural Steels".
| Element | Standard Requirement (%) | Typical Range (%) | Role and Impact Analysis |
|---|---|---|---|
| Carbon (C) | 0.17 ~ 0.23 | 0.18 ~ 0.22 | The decisive element. Provides basic strength (solid solution strengthening + pearlite formation). Its moderate content ensures good plasticity, toughness, and excellent weldability, as well as good cold workability. |
| Silicon (Si) | 0.17 ~ 0.37 | 0.20 ~ 0.35 | Deoxidizer. Dissolves in ferrite for solid solution strengthening, increasing strength without significantly reducing plasticity. |
| Manganese (Mn) | 0.35 ~ 0.65 | 0.40 ~ 0.60 | Important element. Provides solid solution strengthening, increasing strength and hardness. Combines with sulfur to form MnS, eliminating the detrimental effects of sulfur (hot shortness). Improves hardenability. |
| Phosphorus (P) | ≤ 0.035 | ≤ 0.030 | Harmful impurity. Causes cold brittleness, significantly reducing low-temperature toughness. Strictly controlled. |
| Sulfur (S) | ≤ 0.035 | ≤ 0.025 | Harmful impurity. Causes hot shortness, reduces weldability and toughness. Sulfide inclusions impair fatigue performance. |
| Key Material Characteristic: | Low-carbon, low-alloy design. Its carbon equivalent is very low, typically less than 0.40%, meaning it can be welded easily without preheating or post-heat treatment, making it the preferred material for welded structures. |
Mechanical properties vary slightly depending on the product condition (hot-rolled/normalized) and applicable standard. The following values are typical for the hot-rolled condition per the GB/T 8163 (fluid pipe) standard.
| Property | Typical Value / Range | Engineering Significance & Performance |
|---|---|---|
| Yield Strength (Rp0.2) | ≥ 245 MPa | Resistance to plastic deformation. For 20# steel, this value is moderate, indicating good formability without excessive difficulty in stamping or bending due to high strength. |
| Tensile Strength (Rm) | 410 ~ 550 MPa | Resistance to maximum uniform plastic deformation. Provides a good safety margin. |
| Elongation (A) | ≥ 25% | High plasticity index. Indicates the material undergoes significant plastic deformation before fracture, absorbing substantial energy, resulting in good safety and formability (e.g., tube expanding, flaring). |
| Impact Energy (KV2) | ≥ 39 J (Room Temp.) | Good toughness at ambient temperature, capable of withstanding certain dynamic and impact loads. |
| Hardness | ~130 ~ 170 HB | Low Brinell hardness, easy to machine (turn, mill, drill). |
| Elastic Modulus (E) | ~210 GPa | Standard steel stiffness. |
| Key Performance Summary: | Excellent balance of strength and toughness, superior manufacturability. It is not the highest strength steel, but within its strength grade, it offers the best combination of weldability, cold formability, and machinability. |
20# steel has widely recognized equivalents internationally. Note that "equivalent" does not mean "identical"; there are minor variations in chemical composition ranges and properties.
| Country/Standard System | Equivalent Grade | Standard Number | Key Differences & Notes |
|---|---|---|---|
| China | 20, 20# | GB/T 699, GB 9948 (Petrochemical) | The baseline grade. |
| United States | 1020, 1020H | ASTM A29/A29M, ASTM A519 | The most direct equivalent. UNS Number G10200. Nearly identical in chemistry and properties, highly interchangeable. 1020H is a hardenability assured steel. |
| Europe (German Std.) | 1.0402, C22 | EN 10083-2, DIN 17200 (Old) | C22 (1.0402) is an almost perfect equivalent. Sometimes also approximated by 1.1151 (C15). |
| Europe (Material No.) | C22E, C22R | EN 10297-1 (Seamless Tubes) | E - Engineering, R - Pressure. Specific grades within tube standards. |
| Japan | S20C, STPG370 | JIS G4051, JIS G3454 (Pressure Tubes) | S20C is the structural steel equivalent. STPG370 is for pressure tubes, where 370 refers to minimum tensile strength (MPa) – a functional equivalent. |
| International Standard | C22E | ISO 683-18 | Consistent with the European standard. |
⚠️ Important Usage Notes:
Condition Matters: The properties of 20# steel are affected by its heat treatment condition. The normalized condition refines the grain structure, homogenizes the microstructure, and results in slightly better properties than the hot-rolled condition.
Standard Variations: Even for equivalent grades, different application standards (e.g., China's GB/T 8162 for structural tubes, GB/T 8163 for fluid tubes, GB 9948 for petrochemical tubes) impose different strictness levels for the same grade 20# regarding test items and requirements (e.g., impact energy, non-metallic inclusion control). GB/T 8163 is the strictest, requiring mandatory hydrostatic testing on every pipe.
Application Limits: 20# steel is suitable for ambient temperatures (above -20°C) and low to medium-pressure environments. It is NOT suitable for:
High-temperature environments (>450°C) – strength drops sharply.
Low-temperature environments (<-20°C) – insufficient toughness.
Highly corrosive environments – no corrosion resistance.
Critical components subject to high wear or high cyclic stress.
Conclusion: 20# steel is a "versatile" foundational engineering material. Its success lies in its outstanding overall performance and manufacturability, not in any single top-tier specification. In design, when strength is not the primary limiting factor but weldability, bending, flaring, and other processing characteristics along with cost are paramount, 20# steel is almost always the first choice. In international procurement and drawing specifications, 1020 (US Standard) is its most universal name.
