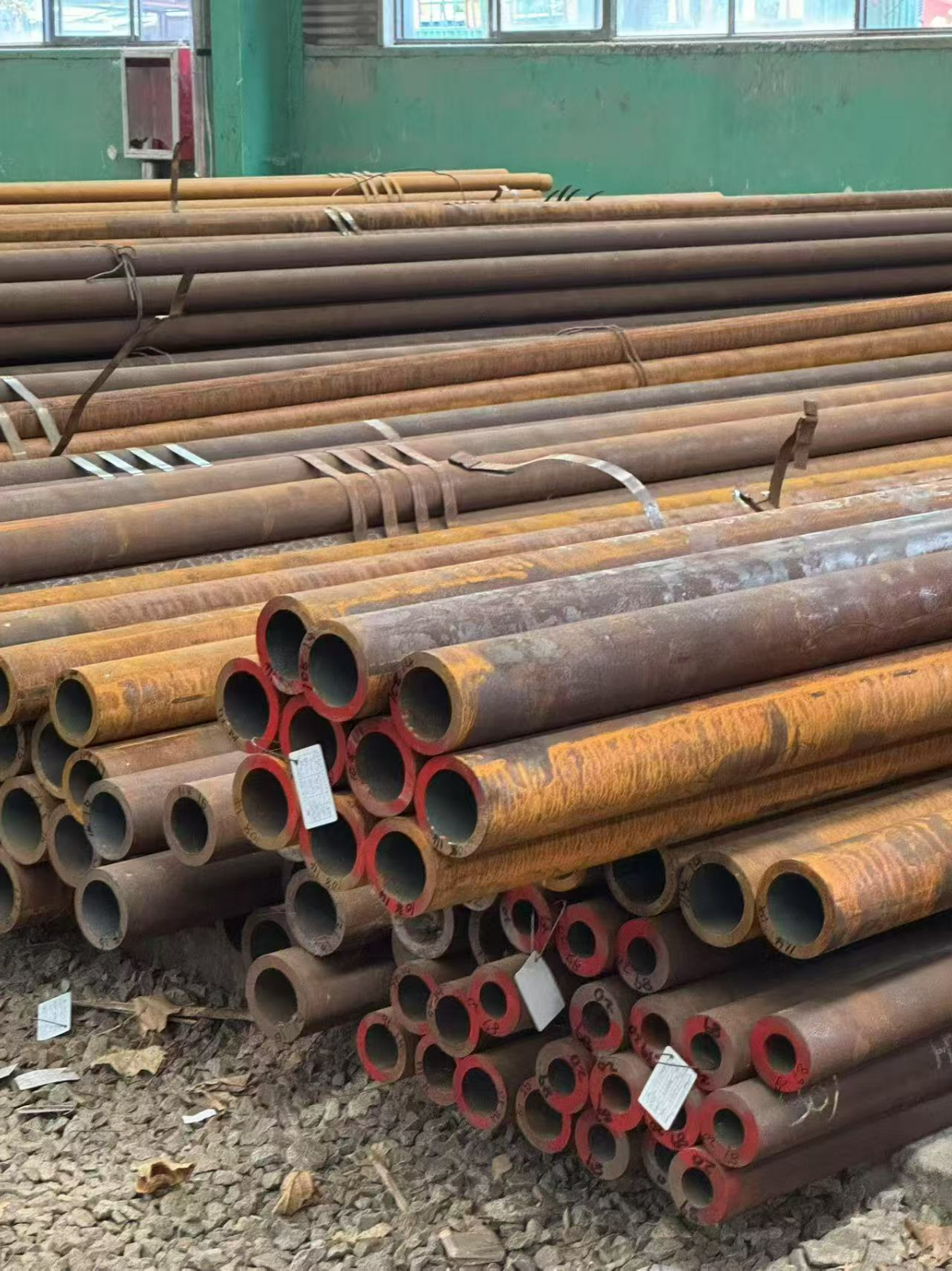

45#

Product introduction

Comprehensive Analysis of Grade 45# Steel

Grade 45# Steel is one of the most important medium-carbon, high-quality carbon structural steels in China. The "45" indicates an average carbon content of about 0.45%. It is renowned for its excellent comprehensive mechanical properties after proper heat treatment, offering high strength, good wear resistance, and moderate toughness, making it a cornerstone material for manufacturing critical mechanical components.

1. Material (Chemical Composition) Analysis

The chemical composition of 45# steel is specified in GB/T 699-2015 "High-Quality Carbon Structural Steels". Its higher carbon content fundamentally differentiates it from 20# steel.

Element	Standard Requirement (%)	Typical Range (%)	Role and Impact Analysis
Carbon (C)	0.42 ~ 0.50	0.43 ~ 0.48	The core defining element. The increased carbon content (~0.45% vs. 0.20% in 20#) dramatically increases strength and hardness through solid solution strengthening and increased pearlite volume. However, it significantly reduces weldability, plasticity, and cold formability. The carbon equivalent is higher, increasing cracking risk during welding.
Silicon (Si)	0.17 ~ 0.37	0.20 ~ 0.35	Deoxidizer and solid solution strengthener.
Manganese (Mn)	0.50 ~ 0.80	0.55 ~ 0.75	Higher Mn range than 20# steel. Enhances strength and, crucially, improves hardenability—the depth to which a hardened microstructure (martensite) can form during quenching. This is vital for effective heat treatment of larger sections.
Phosphorus (P)	≤ 0.035	≤ 0.030	Harmful impurity.
Sulfur (S)	≤ 0.035	≤ 0.025	Harmful impurity.
Key Material Characteristic:			A medium-carbon, hardenable steel. Its primary value is unlocked through quenching and tempering (调质). In the as-rolled or normalized condition, its properties are unremarkable. Its chemistry is optimized for through-hardening to create strong, wear-resistant components like gears, shafts, and bolts. Its weldability is poor; welding requires strict preheating, controlled procedures, and often post-weld heat treatment.

2. Mechanical Properties Analysis

The properties of 45# steel are highly dependent on its heat treatment state. The values below illustrate this critical dependence.

Property / Condition	As-Rolled / Normalized	Quenched & Tempered (调质)	Surface Hardened (e.g., Induction)
Typical Process	Air-cooled from hot-working temp.	Quenched in water/oil + High Temp. Tempering (~550°C)	Surface heated rapidly & quenched. Core remains tough.
Yield Strength (Rp0.2)	≥ 355 MPa	550 – 750 MPa	Surface: Very High
Tensile Strength (Rm)	≥ 600 MPa	750 – 900 MPa	Surface: Very High
Elongation (A)	≥ 16%	≥ 14%	Core: Good
Impact Energy (KV2)	≥ 39 J	50 – 80 J	Core: Good
Hardness	~170 – 220 HB	220 – 280 HB (~23-30 HRC)	Surface: 50-60+ HRC
Key Microstructure	Ferrite + Pearlite	Tempered Sorbite (回火索氏体)	Surface: Martensite
Application Implication	Baseline state for further machining/HT.	The optimal state for most critical parts. Achieves the best combination of high strength, good toughness, and fatigue resistance. The core reference for design.	For parts requiring a hard, wear-resistant surface (e.g., gear teeth, cam surfaces) with a tough, shock-absorbing core.

Key Performance Summary: The hallmark of 45# steel is its excellent response to quenching and tempering. In the "调质 (Tiao Zhi)" condition, it achieves an outstanding balance of strength and toughness, making it the material of choice for high-stress, rotating, or reciprocating components subject to dynamic loads.

3. International Grade Equivalents

While chemically similar, international equivalents often have specified hardenability bands (H-band steels in the US), which is a key difference from the Chinese 45#.

Country/Standard System	Equivalent / Closest Grade	Standard Number	Key Differences & Notes
China	45, 45#	GB/T 699	The baseline grade. Generally supplied to chemical composition only.
United States	1045, 1045H	ASTM A29/A29M, ASTM A519	1045 is the direct chemical equivalent. 1045H is a hardenability-guaranteed steel with controlled Mn range to ensure consistent depth of hardening. UNS G10450/G10450H.
Europe (German Std.)	1.0503, C45	EN 10083-2, DIN 17200 (Old)	C45 (1.0503) is the primary equivalent. C45E (1.1191) for engineering, C45R for pressure purposes in tube standards.
Japan	S45C	JIS G4051	The standard equivalent for structural use.
International	C45E	ISO 683-18	Consistent with European standards.

⚠️ Critical Usage and Design Notes:

Heat Treatment is Mandatory: Never design a critical component using "as-supplied" 45# steel properties. The Quenched & Tempered (调质) condition is the default assumed state for load-bearing calculations.
Quenching Cracking Risk: Due to its medium carbon content and the required water or oil quenching, distortion and cracking are significant risks, especially for parts with complex geometries or sharp section changes. Design for heat treatment (uniform sections, generous fillets) is crucial.
Weldability is Poor: Requires stringent procedures: preheating (~250-350°C), low-hydrogen electrodes, controlled heat input, and slow cooling/post-heat treatment (e.g., stress relief annealing) to prevent cold cracks.
Hardenability Limitation: For large-diameter shafts or thick sections (>~30mm in water quench), the core may not fully transform to martensite during quenching, leading to lower core strength. For such applications, alloy steels like 40Cr (with Cr for better hardenability) are preferred.
Common Applications: Widely used for gears, shafts, spindles, bolts, connecting rods, crankshafts (for smaller engines), and other heavily loaded machine parts.

Conclusion: 45# steel is the quintessential medium-carbon workhorse for high-strength mechanical components. Its value proposition is superior cost-performance after quenching and tempering. The key for engineers is to specify the required heat treatment state ("调质处理至HRC XX-YY") on drawings and to understand its limitations in weldability and hardenability. When sourcing internationally, 1045 (US) or C45/S45C (EU/JP) are the correct designations, with a preference for H-grades (e.g., 1045H) when consistent through-hardening is critical.
