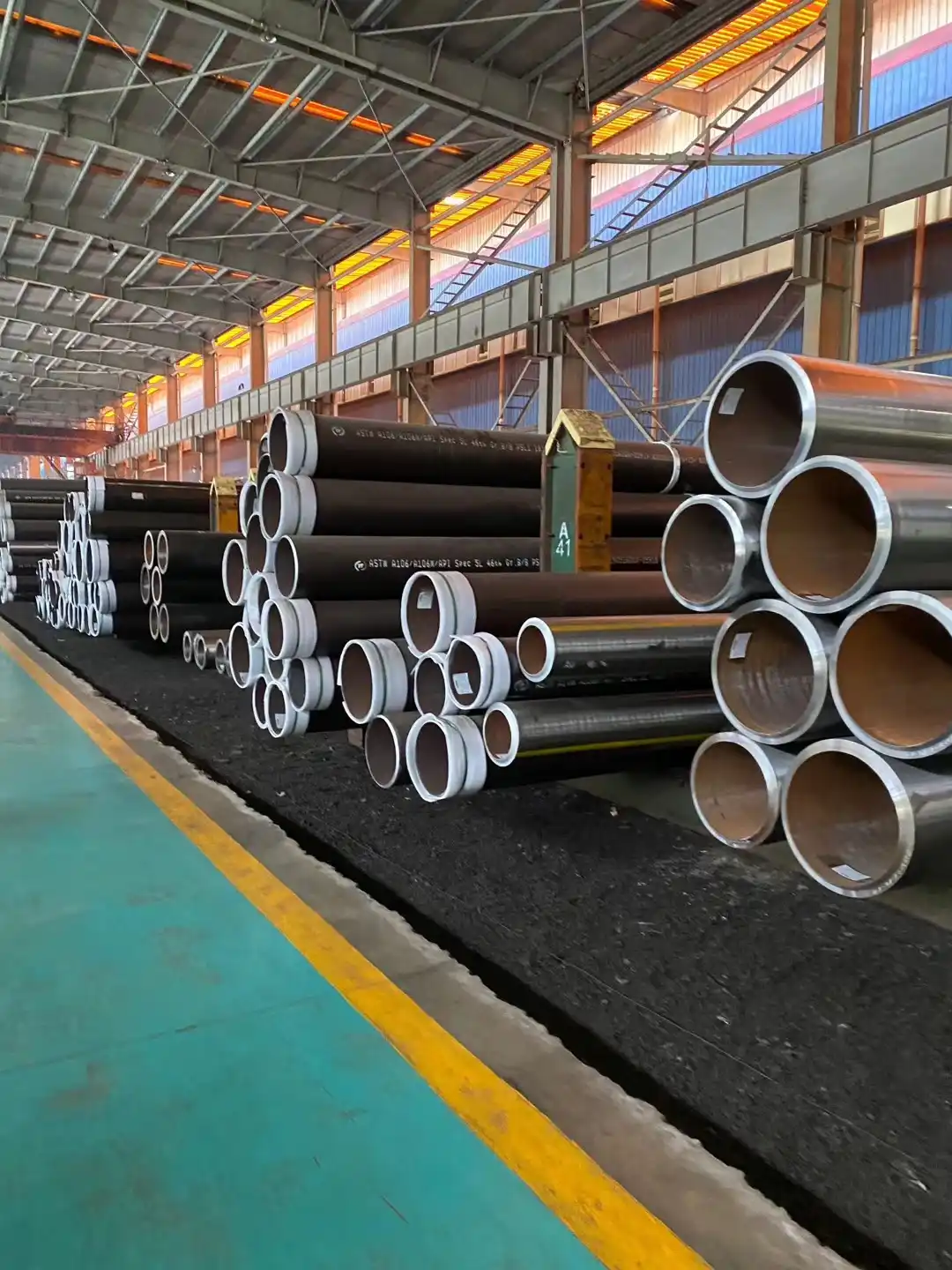

E355

Product introduction

Technical Analysis of E355 Seamless Steel Tube

1. Material & Standard Overview

E355 is a non-alloy quality steel grade defined under the European standard EN 10255 (formerly DIN 2448) for seamless tubes. It is widely used for pressure purposes, structural applications, and general engineering.

• Approximate Equivalent Grades:

• China: Q355B (GB/T 3094, GB/T 8162)

• Germany: S355J2H (DIN EN 10210)

• USA: AISI/SAE 1026, ASTM A519 Grade 1026

2. Chemical Composition (Key Elements)

The chemical composition is the primary factor determining the material's properties. The following chart illustrates the typical maximum percentage ranges for key elements in E355 steel.

CHEMICAL COMPOSITION (EN 10255 - Typical Values, % max)
| Element | Symbol | Content Range | Effect on Properties |
|---------|--------|---------------|----------------------|
| Carbon  |   C    |     ≤ 0.22    | Strength, Hardness   |
| Silicon |   Si   |     ≤ 0.55    | Deoxidation, Strength|
| Manganese|  Mn   |     ≤ 1.60    | Strength, Toughness  |
| Phosphorus|  P    |     ≤ 0.040   | (Impurity) Brittleness|
| Sulfur  |   S    |     ≤ 0.040   | (Impurity) Machinability|

Analysis:

• Low to Medium Carbon Content: Ensures a good balance of strength and weldability.

• Significant Manganese Content: Enhances strength and hardenability through solid solution strengthening, and improves toughness.

• Controlled Phosphorus & Sulfur: Low levels minimize hot shortness and cold brittleness, ensuring better ductility.

3. Mechanical Properties

The "355" in E355 designates its minimum yield strength. The mechanical properties guaranteed by the standard are summarized below.

MECHANICAL PROPERTIES (EN 10255 - Minimum Requirements)
| Property | Symbol | Unit | Value | Visual Representation |
|----------|--------|------|-------|-----------------------|
| Yield Strength | ReH | MPa | ≥ 355 | ██████████ (High Base Strength) |
| Tensile Strength | Rm | MPa | 490 - 630 | ████████████████ (Strong) |
| Elongation at Break | A | % | ≥ 22 | ████████ (Good Ductility) |

Mechanical Performance Analysis:

• High Strength: The minimum yield strength of 355 MPa classifies it as a high-strength, low-alloy (HSLA) steel, suitable for load-bearing structures.

• Excellent Ductility: The minimum 22% elongation indicates good formability and energy absorption capacity before fracture, providing a safety margin.

• Good Toughness: The composition, especially the Mn content, provides adequate impact resistance at ambient temperatures.

4. Material Characteristics & Applications

Based on the above analysis, the core characteristics and typical applications are:

A. Key Characteristics

• High Strength-to-Weight Ratio: Enables lighter structures with high load capacity.

• Good Weldability: Can be welded using all standard methods without pre-heating (for typical thicknesses), thanks to controlled carbon equivalent (CEV ~0.40-0.45).

• Machinability: Fair, improved by the sulfur content at the upper limit.

• Corrosion Resistance: Limited; requires painting, galvanizing, or other protection for exterior use.

B. Typical Applications

• Pressure Systems: Hydraulic and pneumatic cylinders, high-pressure fluid transmission lines (water, oil, gas).

• Structural Components: Columns, supports, and chassis in construction machinery, agricultural equipment, and automotive frameworks.

• Mechanical Parts: Shafts, rollers, and hollow parts in general engineering.

• Boiler and Heat Exchanger Tubes: For certain non-critical pressure parts.

5. Summary Table

This material offers a robust and cost-effective solution for applications requiring reliable performance under significant mechanical stress.
