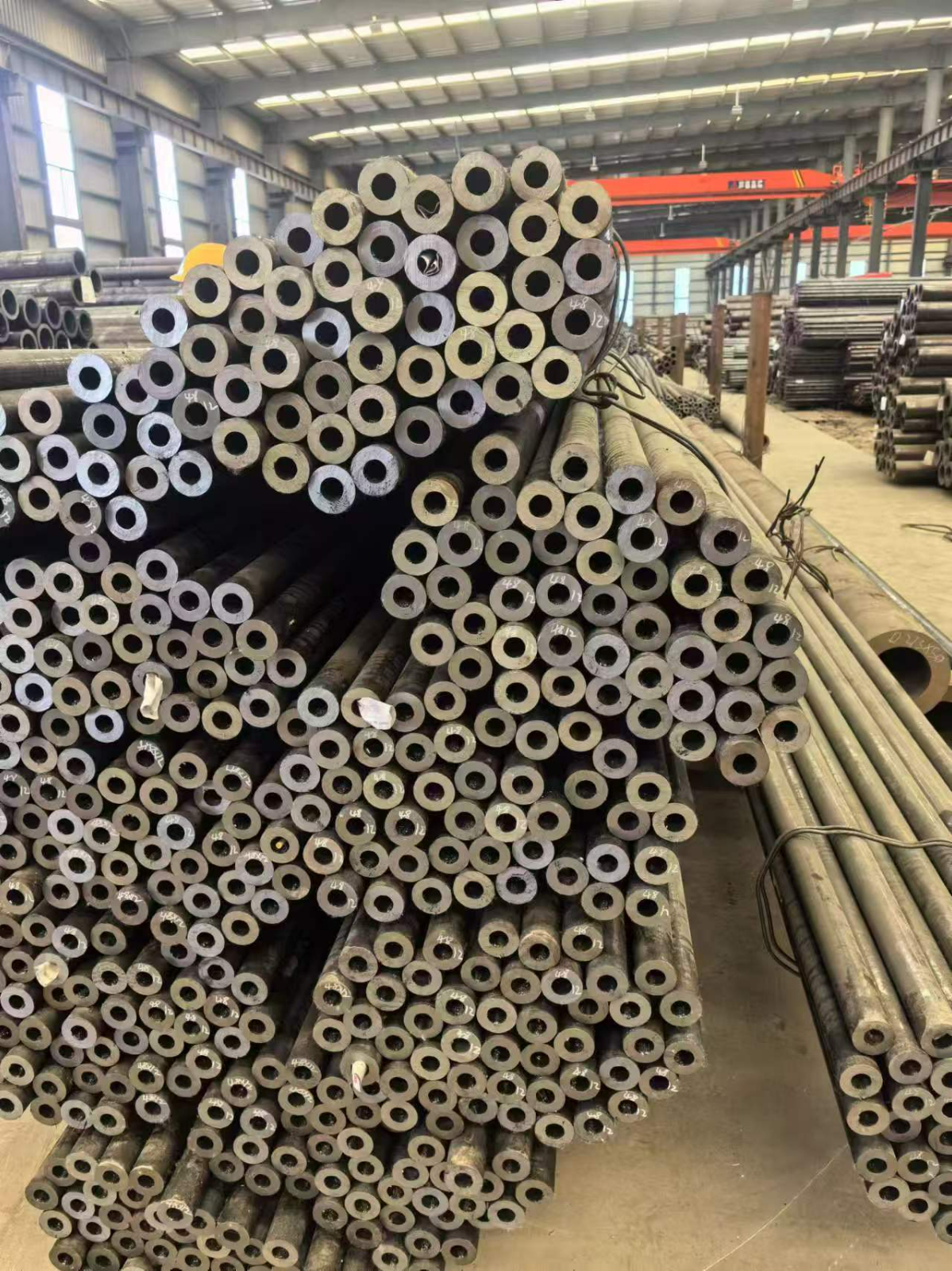

S235JR

Product introduction

Core Standard & Designation Suffixes

Primary Standard: EN 10025-2: 2019 (Hot rolled products of structural steels - Part 2: Technical delivery conditions for non-alloy structural steels)
Designation Format: S235 + Impact Toughness Symbol + Delivery Condition Symbol
Common Suffix Combinations:

S235JR: The most common grade. J indicates Charpy impact energy at room temperature (+20°C), R specifies a minimum impact energy of 27 J.
S235J0: J0 indicates impact energy is guaranteed at 0°C.
S235J2: J2 indicates impact energy is guaranteed at -20°C. (Note: In the latest EN 10025-2, the J2 grade for S235 might not be available for all thicknesses; JR is the most common).
S235JRG1/G2/G3/G4: Variations of JR with additional, stricter or more lenient, requirements on yield strength (less common).

1. Key Mechanical Properties

The following data is based on EN 10025-2 for the most common reference thickness of ≤ 16 mm for plates/sections. Properties slightly decrease with increasing product thickness.

Property	Value & Requirement	Explanation & Significance
Yield Strength (ReH)	≥ 235 MPa	This is the origin of the "235" number. The stress at which the material begins to undergo significant plastic deformation. It is the core parameter for structural strength design.
Tensile Strength (Rm)	360 - 510 MPa	The maximum stress the material can withstand before fracture. The difference between Rm and ReH indicates the material's plastic reserve.
Elongation at Break (A)	≥ 26%	Minimum elongation based on a gauge length (Lo) of 5.65√S₀. A high value indicates good formability and ductility, allowing for bending and stretching without brittle fracture.
Impact Energy (KV)	≥ 27 J	For S235JR, the minimum Charpy V-notch impact energy value at +20°C. Ensures the material has sufficient toughness to resist brittle fracture.

Important Notes:

Yield Strength is a minimum value; it must be greater than or equal to 235 MPa.
Tensile Strength is a range; it must fall between 360-510 MPa. This ensures the material has adequate strength without being overly hard and brittle.
The values above are minimums or typical ranges. Actual mill-produced material often exceeds these standard requirements.

2. Chemical Composition Analysis (by mass %)

S235 is a non-alloy (carbon) steel. Its chemistry prioritizes achieving mechanical properties and excellent weldability rather than relying on significant alloying elements.

Element	Typical Range / Max (S235JR)	Role & Analysis
Carbon (C)	≤ 0.17%	The key element. The low content is the primary reason for S235's excellent weldability. Low carbon minimizes hardening and crack susceptibility in the weld heat-affected zone (HAZ). It is also the main reason for its relatively low strength.
Manganese (Mn)	≤ 1.40%	A solid-solution strengthening element that increases strength and toughness. Combines with Sulfur to form MnS, which can improve machinability.
Phosphorus (P)	≤ 0.035%	Harmful impurity. Causes cold shortness (embrittlement) and reduces low-temperature toughness. Its content is strictly limited by the standard.
Sulfur (S)	≤ 0.035%	Harmful impurity. Forms sulfide inclusions, causing hot shortness and impairing toughness and weldability. Its content is strictly limited by the standard.
Nitrogen (N)	≤ 0.012%	If too high, can reduce ductility and toughness, particularly causing aging sensitivity.
Silicon (Si)	-	Typically present as a deoxidizer, not in high amounts. Provides slight solid-solution strengthening.

Core Material Characteristics:

Low Carbon Equivalent: Its carbon equivalent (CEV) is very low (approx. 0.28-0.35%), meaning it has extremely low cold cracking susceptibility. It can often be welded without preheating or post-heat treatment, which is one of its greatest processing advantages.
Purity Control: Explicit upper limits for harmful P and S elements ensure basic toughness and workability.

3. Comprehensive Material Analysis & Applications

Advantages:

Excellent Weldability and Formability: Low C, P, and S content make it easy to weld, cut, bend, and stamp.
Good Ductility and Toughness: High elongation and compliant impact energy allow it to withstand certain shock loads and deformation.
Low Cost: Minimal alloying elements and mature production processes make it one of the most cost-effective structural steels.
Wide Availability: Produced by mills worldwide in a complete range of specifications.

Disadvantages/Limitations:

Low Strength: A yield strength of only 235 MPa makes it unsuitable for high-stress, lightweight, or large load-bearing structures (where S355 or higher grades are used).
Poor Corrosion Resistance: Prone to rust, requiring surface protection (e.g., painting, galvanizing).
Average Wear Resistance: Not very hard, making it unsuitable for components subject to direct abrasion.

Typical Application Fields:

Building Structures: Lightweight factory buildings, staircases, platforms, door/window frames, and other non-primary load-bearing components.
General Machinery Structures: Frames, housings, guardrails, hoppers, non-precision parts.
Vehicle Manufacturing: Trailer bodies, internal brackets.
Pipe Supports, Cable Trays, etc.
Widely used in applications where high strength is not critical, but extensive welding and forming are required.

4. Comparison with Other Common Grades

vs. S275: S275 has higher strength (yield strength ≥ 275 MPa) but slightly inferior weldability. It is the first consideration when S235 strength is insufficient.
vs. S355: S355 is the workhorse of high-strength structural steel, with significantly higher strength (≥ 355 MPa) than S235. However, it has a higher carbon equivalent, usually requiring preheating and other precautions during welding.
