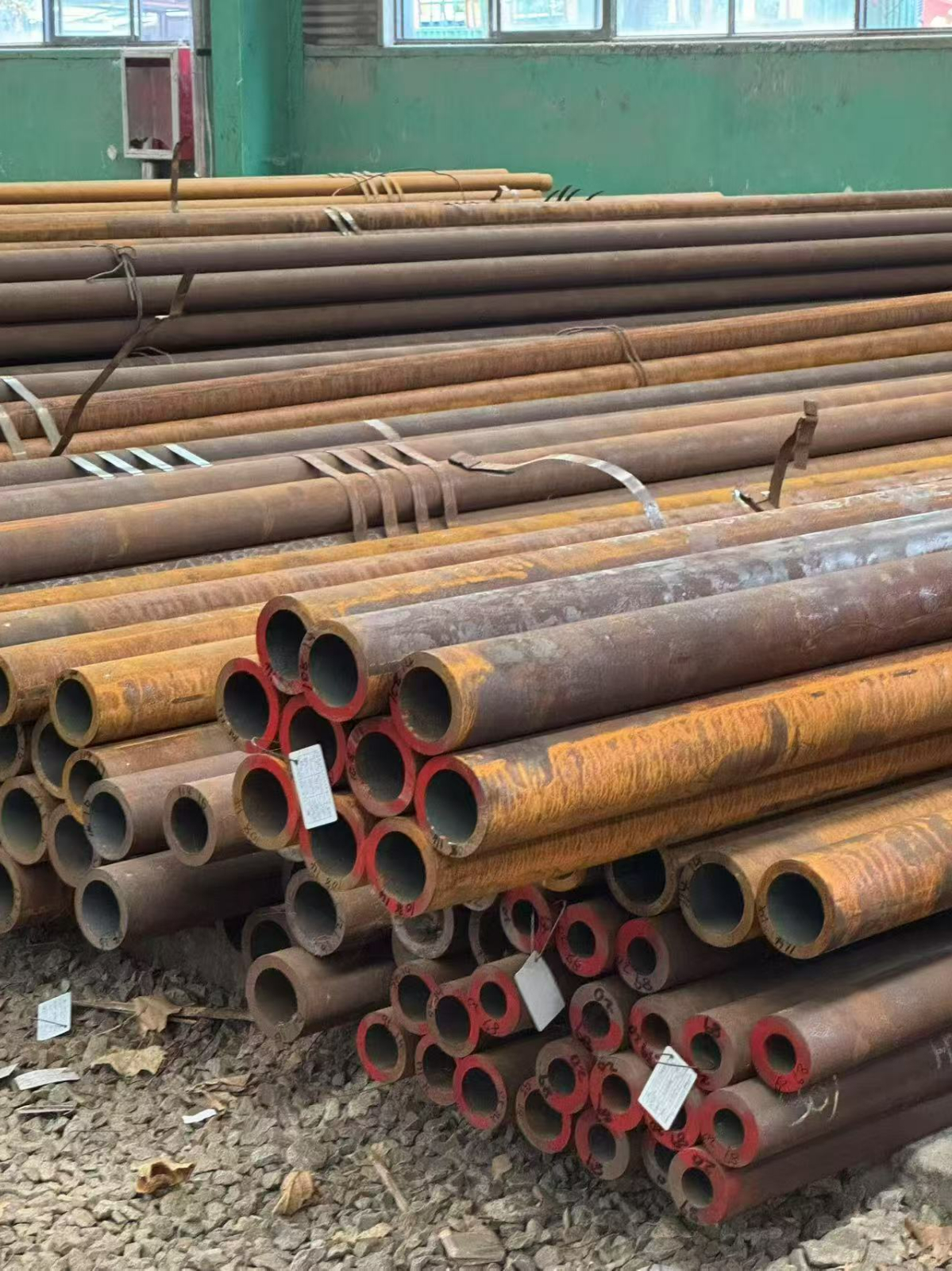

S355

Product introduction

Core Standard & Designation

• Primary Standards:

• EN 10025-2: For non-alloy and HSLA steels (e.g., S355J2).

• EN 10025-3: For normalized/normalized rolled weldable fine grain steels (e.g., S355N).

• EN 10025-4: For thermomechanically rolled weldable fine grain steels (e.g., S355M).

• EN 10025-6: For high yield strength steels in the quenched and tempered condition (e.g., S355QL).

• Designation Format: S355 + Subgrade Symbol (+ Delivery Condition)

• Key Subgrades & Symbols:

• +N: Normalized or Normalized Rolled. Refines grain, improves toughness (e.g., S355N).

• +M: Thermomechanically Rolled. Achieves fine grain and high strength without heat treatment (e.g., S355M).

• +QL: Quenched and Self-Tempered. Offers the highest strength-to-toughness combination (e.g., S355QL/QL1).

• JR: 27J at +20°C (Basic quality, less common for S355 in critical uses).

• J0: 27J at 0°C.

• J2: 27J at -20°C (The most common standard grade, S355J2).

• K2: 40J at -20°C (Higher guaranteed impact energy).

• NL: 27J at -50°C (for normalized/thermomechanical grades, e.g., S355NL).

• Impact Toughness & Minimum Service Temperature:

• Delivery Condition (Often integrated into the grade):

1. Key Mechanical Properties

Data is for the common reference thickness of ≤ 16 mm for plates/sections. The 355 MPa yield strength is the defining feature.

Important Notes on Thickness & Condition:

• The guaranteed minimum yield strength decreases with thickness. For S355J2, it is 355 MPa up to 16mm, drops to 345 MPa up to 40mm, and 335 MPa up to 63mm.

• Delivery condition drastically affects properties:

• +N / +M: Provide better through-thickness toughness and are mandatory for highly restrained or dynamically loaded joints.

• +QL: Provides superior and uniform properties in very thick sections, often with a higher guaranteed yield (e.g., S355QL1: ReH ≥ 355 MPa for t ≤ 100mm).

2. Chemical Composition Analysis

S355 achieves its higher strength primarily through micro-alloying with elements like Niobium (Nb), Vanadium (V), and Titanium (Ti), along with controlled rolling processes.

Core Material Characteristics:

• Micro-alloyed HSLA Steel: Strength comes from fine grain structure and precipitation hardening, not just from carbon.

• Weldability with Precautions: Excellent weldability is achievable but must be engineered. Proper choice of consumables (matching strength and toughness), preheat, and heat input control are essential.

3. Comprehensive Material Analysis & Applications

Advantages:

1. High Strength-to-Weight Ratio: The primary advantage, enabling lighter, more economical, and more sustainable structures (less material, smaller foundations).

2. Excellent Toughness: Fine-grain structure ensures good impact resistance at low temperatures, crucial for structural safety and fatigue resistance.

3. Good Fabricability: Despite higher strength, it retains good cold forming and cutting characteristics.

4. Versatility: Available in various subgrades and delivery conditions to suit specific environmental and loading requirements.

Disadvantages/Limitations:

1. Higher Cost: More expensive than S235/S275 due to alloying and controlled processing.

2. Complex Welding Requirements: Mandates strict welding procedures, qualified personnel, and often non-destructive testing (NDT), increasing fabrication complexity and cost.

3. Availability of Grades: Some specialized subgrades (like certain QL or high-thickness NL) may have longer lead times.

Typical Application Fields:

• Heavy Construction & Civil Engineering: The standard for modern buildings, bridges, towers, and stadiums.

• Offshore & Marine: Jackets, platforms, ship hulls (using NL/ML grades for low-temperature toughness).

• Cranes & Heavy Lifting Equipment: Booms, frames, and runways where high strength minimizes dead weight.

• Wind Energy: Towers and internal structures.

• Mining & Heavy Vehicle Chassis: Where dynamic loads and weight savings are paramount.

• Pressure Vessels & Storage Tanks (using specific quality grades).

4. Direct Comparison: S355 vs. S275 vs. S235

Summary: S355 is the workhorse of modern structural steelwork. Its selection is driven by the need for efficiency and performance. While its material cost is higher and welding more demanding, the overall project savings from reduced steel tonnage, smaller foundations, and improved performance almost always justify its use over S275 or S235 for primary structural elements. The choice of subgrade (J2, N, M, QL) is critical and depends on the specific design requirements for thickness, service temperature, and loading conditions.
