EN10025-5 S235J0W Weather Resistant Steel Plate

Product introduction

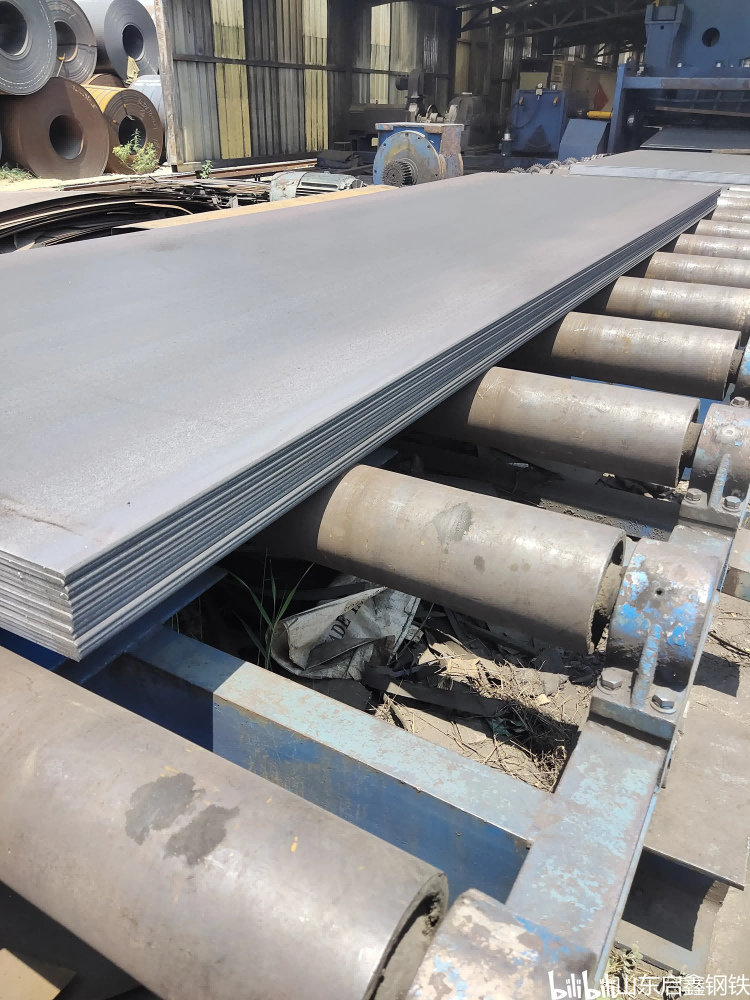

EN10025-5 S235J0W Weather Resistant Steel Plate

EN10025-5 S235J0W Weather Resistant Steel Plate Chemical Composition and Mechanical Property

C max	Si max	Mn	P max	S max	N max	Addition of Nitrogen combining elements	Cr	Cu
0.13	0.40	0.20-0.60	0.035	0.035	0.009	-	0.40-0.80	0.25-0.55

Mechanical Property
Tensile Strength(MPa)	Yield Strength(MPa)	% Elongation in 2 in.(50mm) min	Impacting Test Temperature(°C)
EN10025-5 S235J0W	360-510	235	19	+20,0,-20

EN10025-5 S235J0W Weather Resistant Steel Plate Application

EN10025-5 S235J0W Pressure Vessel And Boiler Steel Plate are used in Pressure Vessel,Boiler,Storage Tanks and Heat Exchanger in Oil,Gas Project.

EN10025-5 S235J0W Weather Resistant Steel Plate Other Name

EN10025-5 S235J0W Boiler steel plate,EN10025-5 S235J0W Pressure Vessel Steel plate, EN10025-5 S235J0W Storage Tanks Steel plate. EN10025-5 S235J0W Heat Exchanger Steel Plate .

Additional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.

Other Terms

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time: 30-50 days, 7 days for stock goods.
Loading Port: Shanghai ,Tianjin, Qingdao.
Offer Ability:5 000MT/Per Month.
MOQ: 1 Pcs.
